THE ALDFORD BARN
For a unique and stylish addition to your garden, the Aldford Barn is the ideal solution This building has all of the practicalities required form a garden building creating a functional outdoor space. The height of the building is incredible, giving you all of the storage space you will need. This cabin comes equipped with joinery made double doors and side windows as standard. Available in both 28mm and 44mm logs.

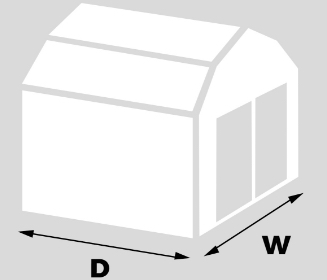

DIMENSIONS EXPLAINED
x :This is the cabin floor size. N.B. please bear in mind overall log length and roof overhang, more details can be found below
y :Ridge height, highest point of the roof externally
z :Eaves height - where the roof starts to slope upwards
There are 3 standard sizes available, imperial sizes given are nominal, metric sizes are the external floor size:
| 10’ x 8’ | (276cm x 216cm) | X=216cm | Y=278cm | Z=215cm |
| 12’ x 8’ | (336cm x 216cm) | X=216cm | Y=278cm | Z=215cm |
| 14’ x 8’ | (396cm x 216cm) | X=216cm | Y=278cm | Z=215cm |
N.B. Interlocking cabin sizing:
The overall log length is 19cm more than the external floor size (above)
The internal floor size is 9cm less than the external floor size
The overall roof size is 39cm wider and 39cm deeper than the external floor size
Please bear in mind roof overhang and guttering (if ordered) when measuring up and building slab or concrete base
Wall timbers – 28mm tongue & groove (untreated), 44mm double T&G can be specified as an optional extra
Floor construction – 18mm tongue & groove (untreated)
Floor joists – 57mm x 44mm (tanalised)
Doors size – 188cm x 152cm (pair)
Doors aperture – 186cm x 150cm
Window size – 105cm x 65cm
10’ and 12’ models have one window, 14’ model comes with two windows
Roof boards - 18mm tongue & groove (untreated)
Roof joists – 115mm x 42mm
Roof felt – standard 20kg green mineral felt
Glazing – 3mm horticultural glass
Internal wall height (lowest point) = 215cm
Internal height to the underside of ridge truss – this varies depending on cabin width - deduct 21cm from external ‘Y’ height
Cabin Installation
The cabin prices are delivered only but you can pay extra for installation.
Felt roof shingles
Up-grade from standard roof felt to shingle tiles, 4 coulours to choose from - Grey, Brown, Red or Green
Guttering
Add black guttering and down-pipe(s) to your cabin. N.B. Supplied only, not fitted.
Toughened Glass
Upgrade from standard 3mm galss to toughened 4mm glass in the windows and doors.
Double Glazing
Add double glazing to the windows and glazed doors.
Front Decking Verandah
Add this attractive decking verandah to the front of your cabin.
| The website price includes VAT and delivery to all addresses in England, Wales & Southern Scotland except for the postcodes below*. If installation is ordered, the installer usually follows-on 1-2 weeks after the building has been delivered. | |||
|
*We do not deliver to the following postcodes but may be able to depending on location and cabin size, please email / phone to enquire - Engalnd - DT, EX, PL, TQ, TR Wales - SA Scotland - AB, DD, FK, IV, KW, KY, PA, PH |
